| Feature | Specification |
| AC Input Voltage | 150~265VAC |
| DC Output voltage | 12VDC |
| Rated Power | 120W |
| Ripple & Noise (max.) | 120mV(max) |
| Voltage Adj. Range | 12~15V |
| Device | Primary-Side Regulation |
| Device(frequency) | 132KHz |
| VDS Voltage | 575V(max) |
| Line Regulations | ±1% |
| Load Regulations | ±5% |
| SCP | Output short-circuit protection |
| OPP, OCP | Output overload/over-current protection |
| OVP | Output overvoltage protection, auto-restart or latching |
| line UV | Line brown-in/out protection |
| OV | Line overvoltage shutdown extends line surge withstand |
| OTP | Accurate thermal shutdown, hysteretic or latching |
| Efficiency(Typ.) | 83% |
| Frequency Range | 47~63HZ |
| Storage Temperature | 0-50°C |

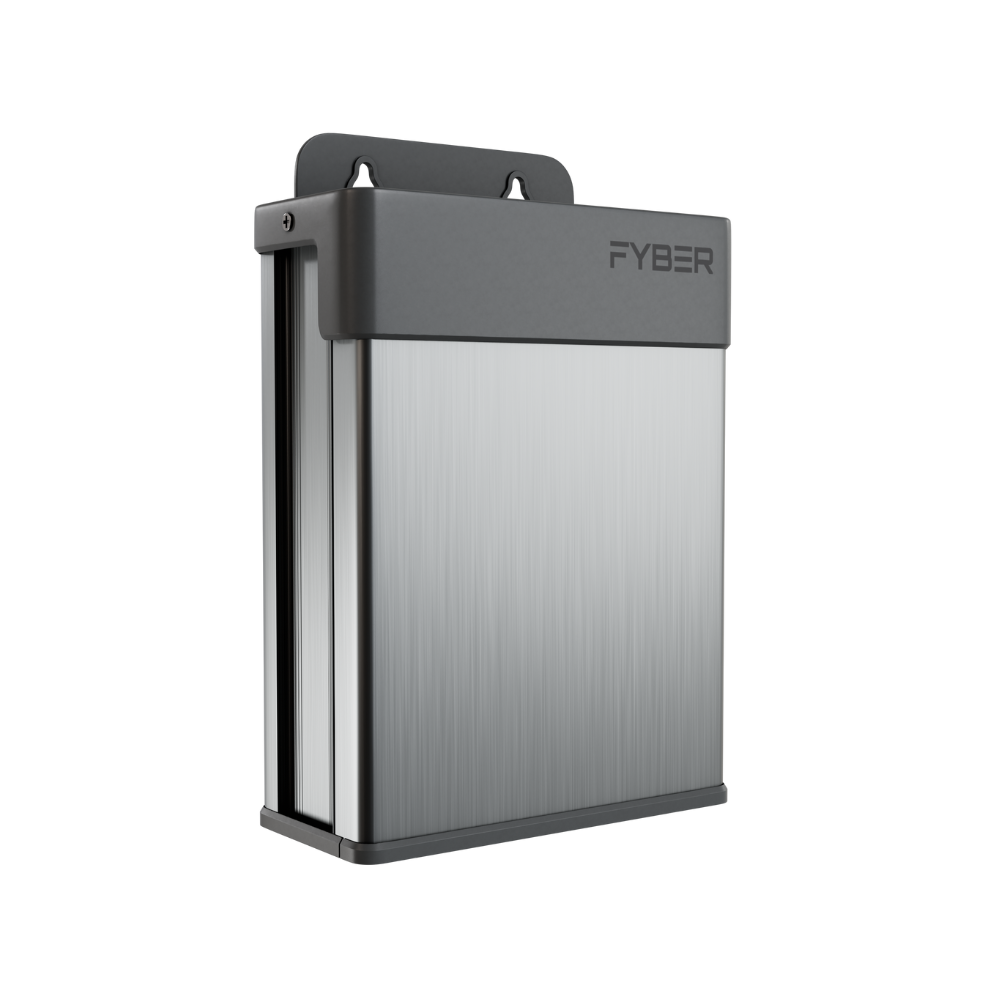

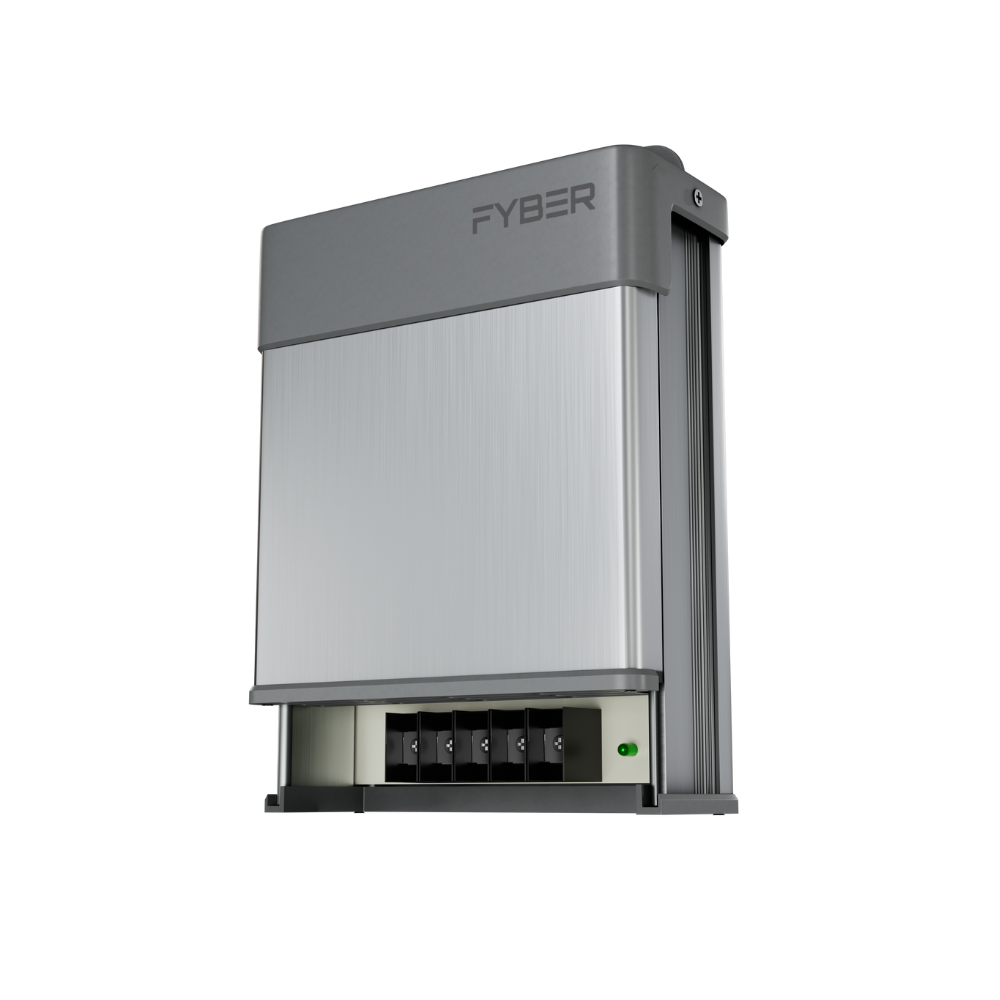

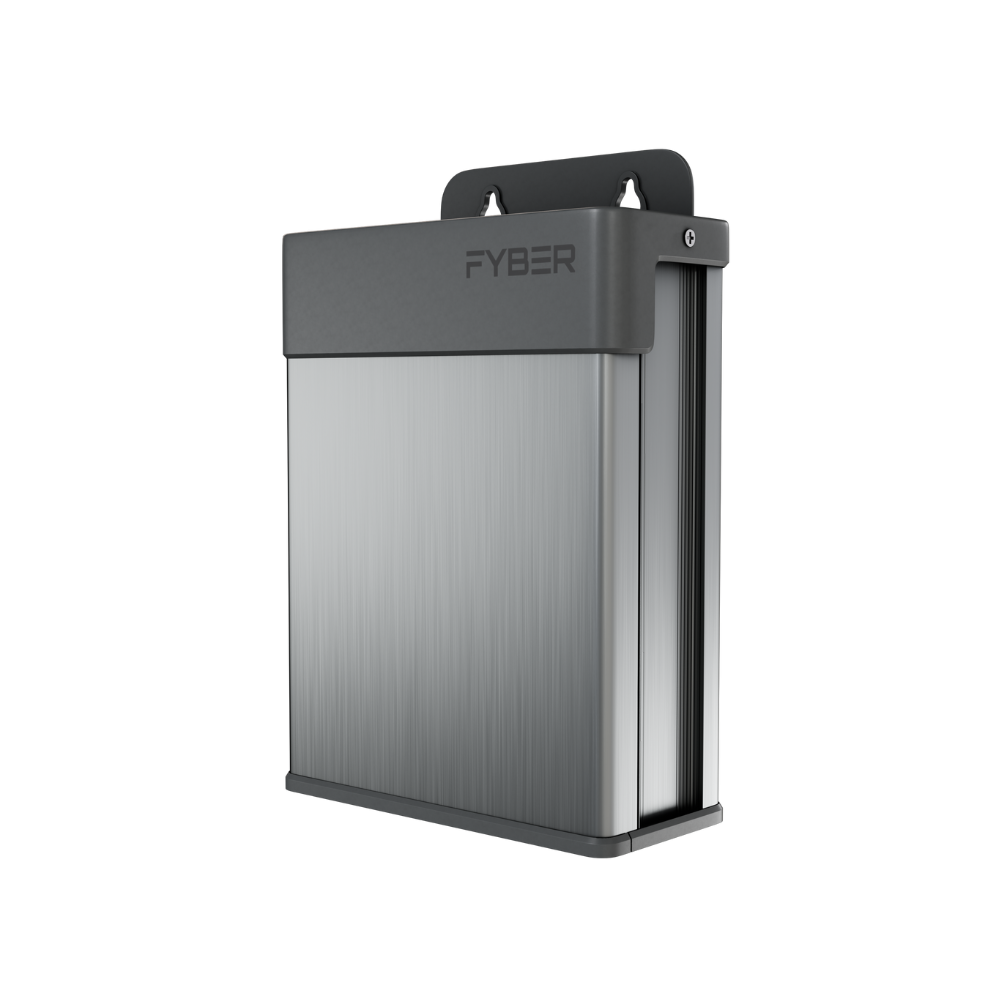

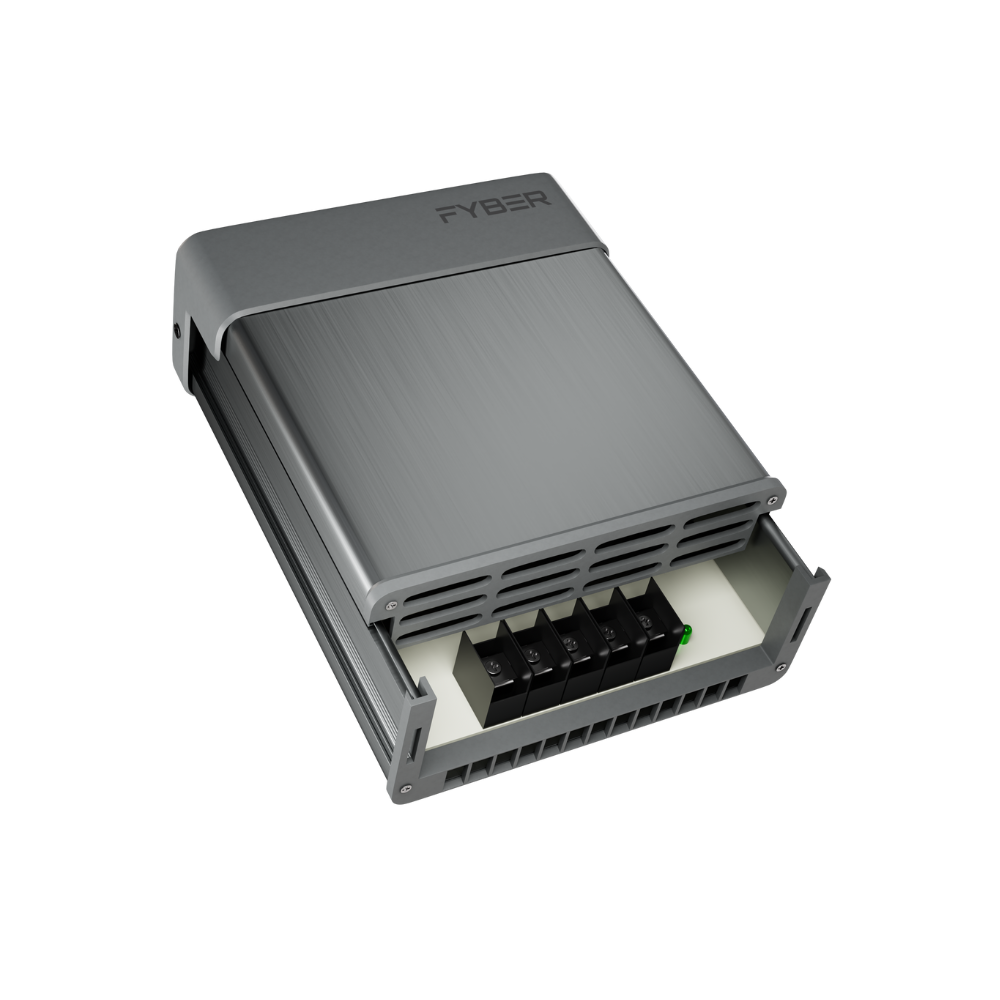

8CH Outdoor SMPS
AS-1210 (Arctic Series Power Supply) Comes with Block Terminal. It delivers 10A current (Max) via output terminal.
- 8 Channel Block Terminal Output.
- Voltage Adjustment Switch.
- Led indicator to shows the functional status.
- Overload, Overvoltage and Over Current Protection.
- Short Circuit and Over Temperature Protection.
- Unique ,Compact & Rainproof Design suitable for Outdoor Applications.
- BIS Certified.
- Aluminium casing for Better heat Dissipation.
